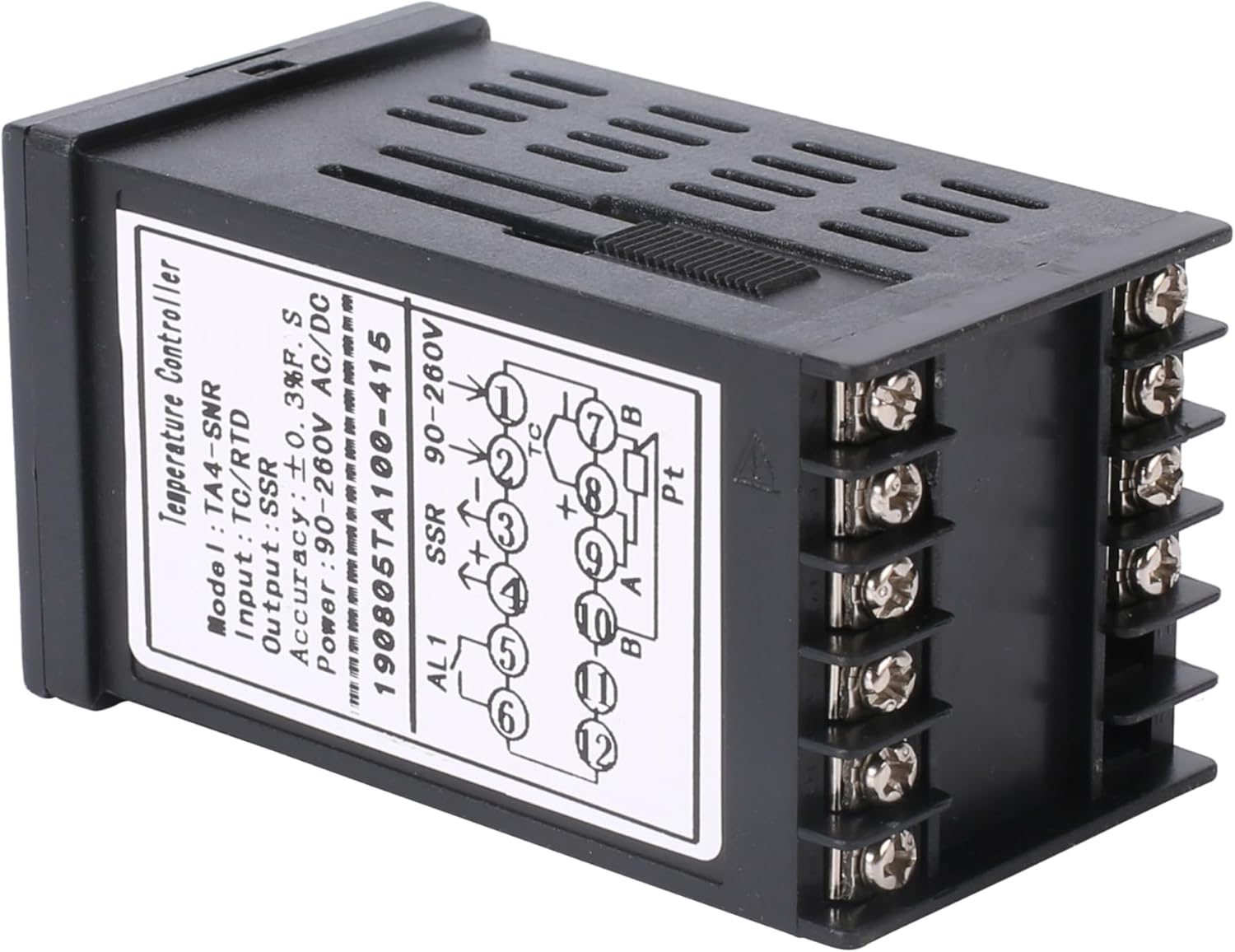

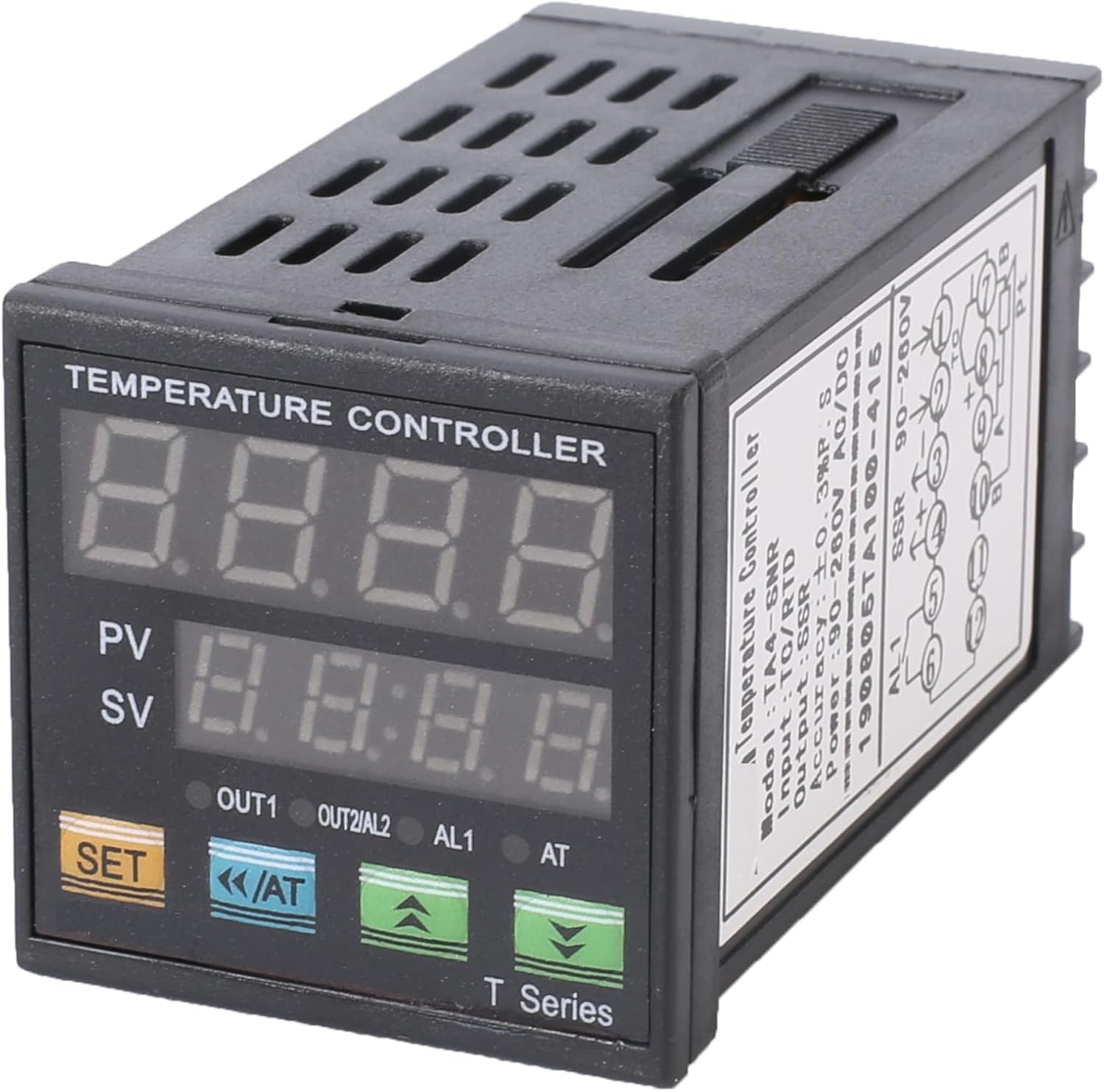

PID Temperature Controller Meter Indicator, Jaybva Digital Universal Thermostat C and Fahrenhe F Display SSR and Alarm Output 40A Solid State Relay and Thermocouple Probe Heat Sink Included

Overview

• Color : PID+40A SSR+Heat Sink+K Sensor
• Brand : Jaybva
• Product Dimensions : 1.89"L x 1.89"W x 3.15"H
• Item Weight : 150 Grams
• Display Type : LCD

About this item

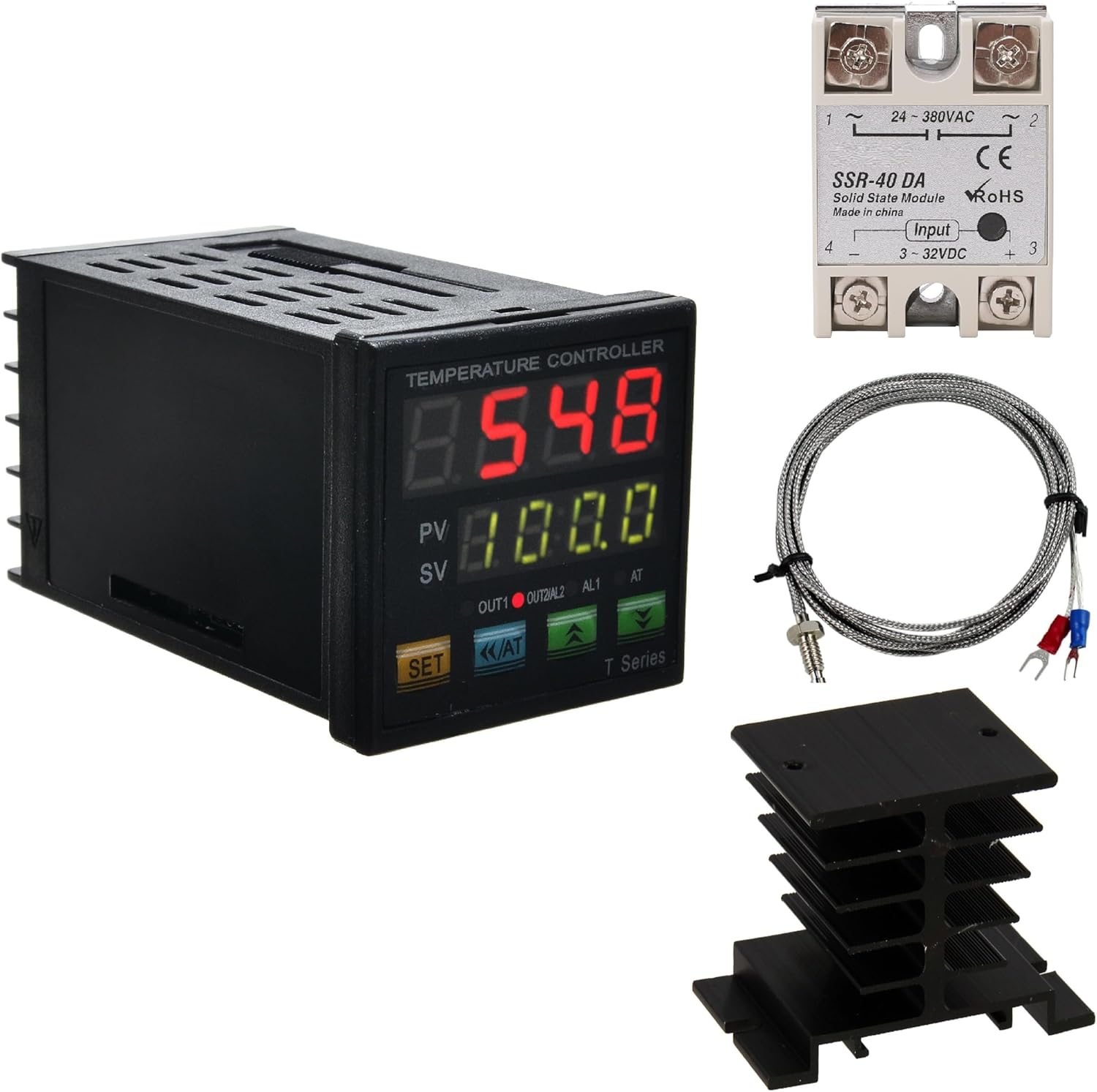

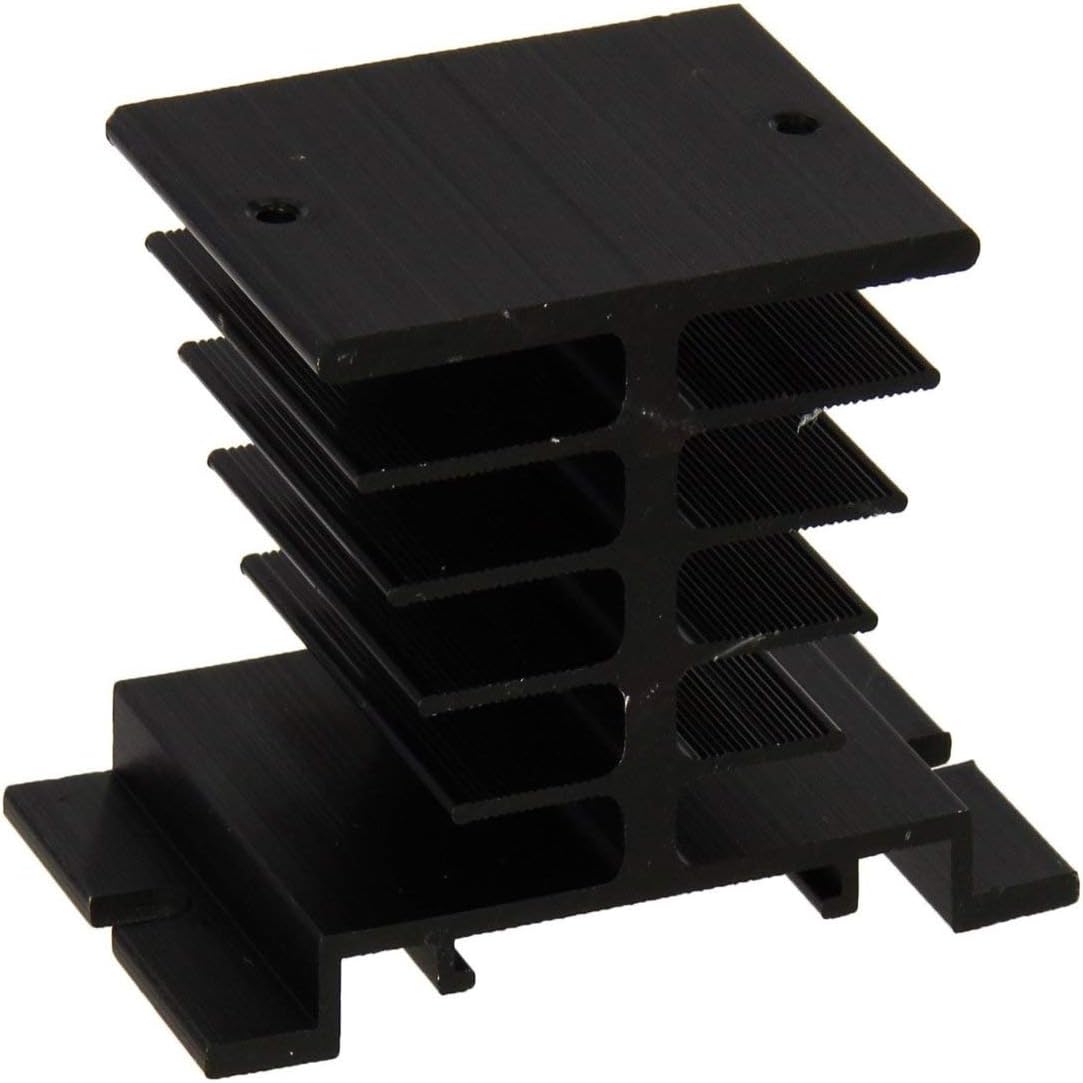

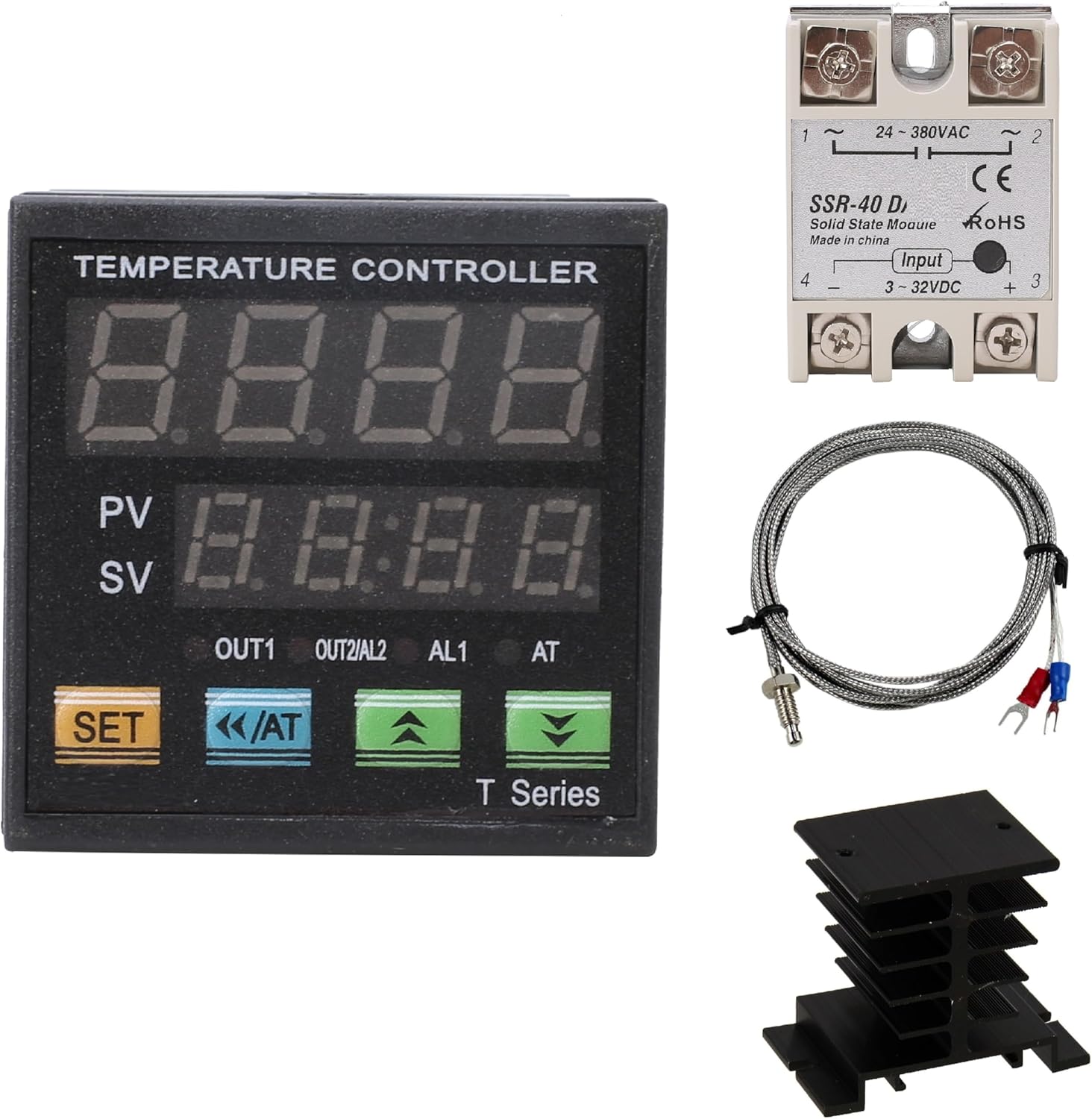

• This PID has Power-off memory function . Contents included: Temperature controller , one 40A SSR / solid state relay , one K type thermocouple sensor probe , one heat sink ( Heat sink size: Roof: 50mm x 60mm ; Foot: 80mm x 50mm ; Height: 50mm)
• This PID temperature controller can read TEMPS in Fahrenheit (F) and Celsius(C) . You can choose Centigrade or Fahrenheit unit . Wide Application: This pid controller is widely used in auto system in line of light industry, chemistry, machinary , metallurgy, ceramics, pertrification industry, or temperature control and adjust system of food & beverage, smoker , incubator, oven; furnance, plastic extruder heating process etc.
• TC/RTD universal input , such as K , J , E , Pt100 etc. SSR solid state relay output . PID auto tunes in one go can be run from near set point for quick auto tune .
• Dual Output: 7 different Dual Output combinations with 1 relayed output and 1 SSR control voltage output.
• This temperature controller has built in autotuning . After you have set the temps , press and hold the blue button for a few seconds and the AT light will come on and run through an auto tuning program to get you the best PID results. Tips : If the working current is very high , we suggest you add an over temperature protecting device to protect the SSR and the loadings .
